Power & Distribution / TECHNICAL STUDY
Generator Operation & Monitoring Panels
Different generator-control cabinet examples with DSE and MEBAY interfaces, metering and emergency-stop controls.
01 / APPLICATION CONTEXT
What the equipment shows.
Generator control combines operating commands, electrical measurements and protection interfaces. These are separate photographed cabinet examples, not evidence of one common installation. A pair of controllers alone does not prove generator synchronizing or load sharing.
02 / VISIBLE TECHNICAL FEATURES
Control, protection and operator interfaces.
- Generator 1 / Generator 2 cabinets with DSE controllers
- MEBAY interfaces and voltage, current, frequency and power meters
- Emergency stops and a labelled three-phase breaker cabinet
03 / ENGINEERING REVIEW
What to verify on a similar installation.
- Confirm controller models, operating modes and protection settings
- Review breaker feedback, interlocks and emergency-stop logic
- If parallel operation is included, define synchronizing and load-sharing acceptance tests
These are proposed review points for a future assessment—not claims that the photographed installation passed those tests.
Documented scope
The original company photographs establish the visible equipment only. Final ratings, connected loads, vessel details and acceptance records require the project drawings and site review.
ADDITIONAL VIEWS / SAME STUDY
The details behind the interface.
Generator operation and monitoring
A generator controller with frequency and speed display, emergency stop and labelled DC 24V, AC 440V and fault indicators. Voltage and speed adjustments and ASSOUM AUTOMATION identification are visible.
Generator controls with MEBAY units

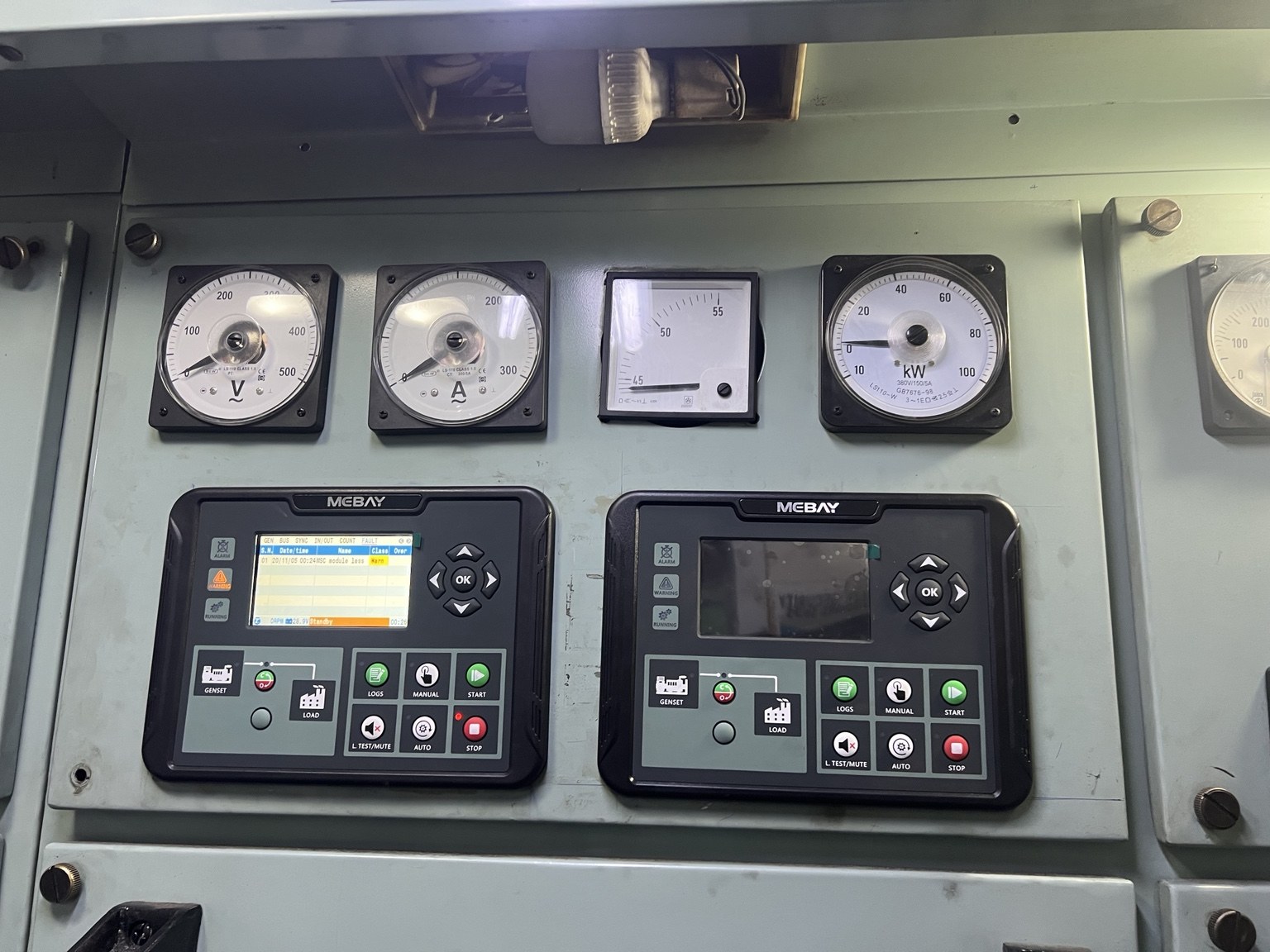

Two MEBAY controllers with start, stop, manual and automatic controls, alongside voltage, current, frequency and power meters. Synchronization and load-sharing configuration are not established by the photograph alone.
Generator control and three-phase breaker cabinet

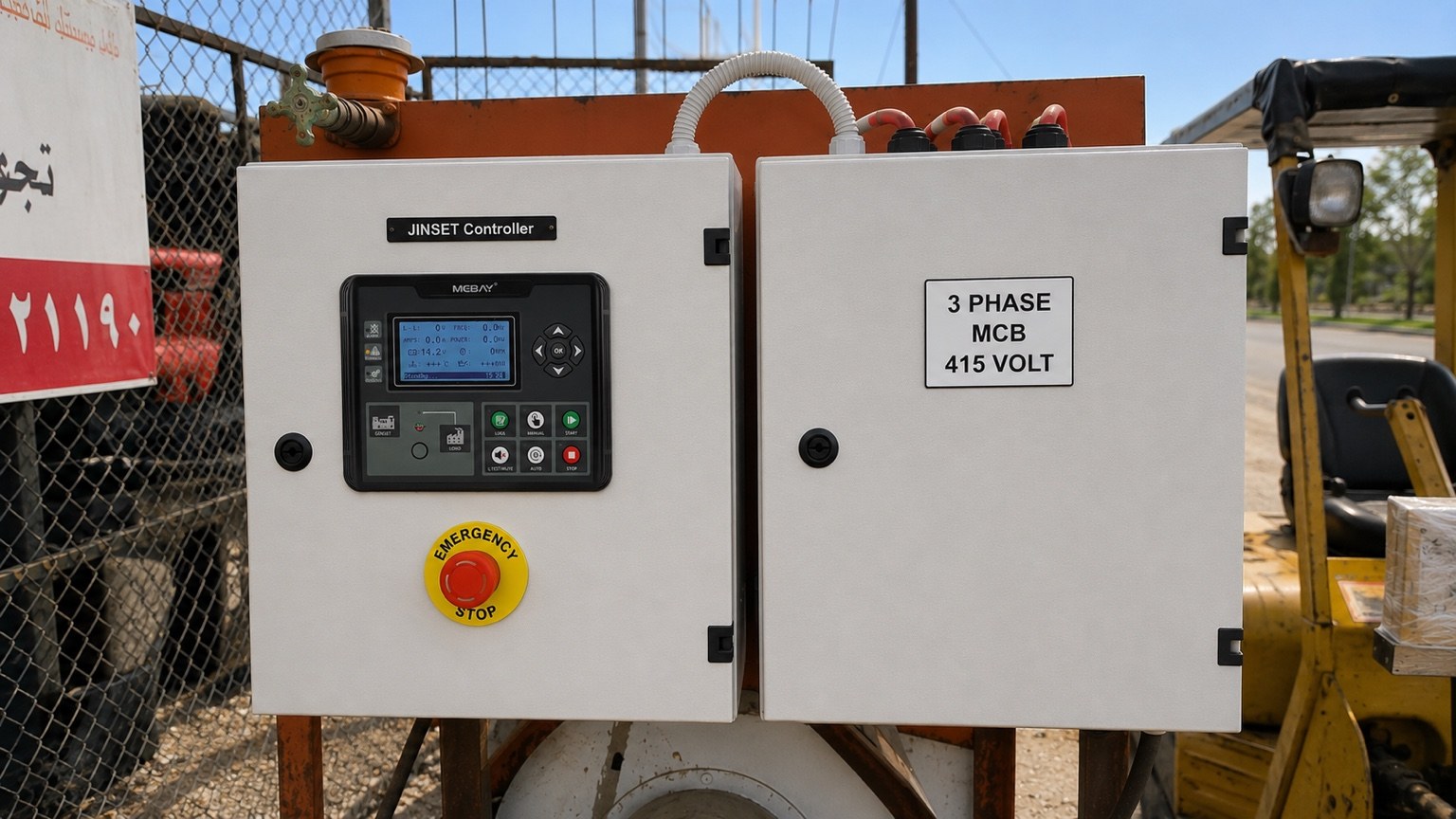

A MEBAY generator controller and emergency stop beside a cabinet labelled 3 Phase MCB 415 Volt, showing the generator interface and its breaker cabinet.
Planning similar work?
Send the equipment model, available drawings, vessel/site location and required scope. We will review the electrical and control interfaces before defining a quotation.
