Machinery Control / TECHNICAL STUDY
POWTRAN Drive & Braking-Unit Cabinet

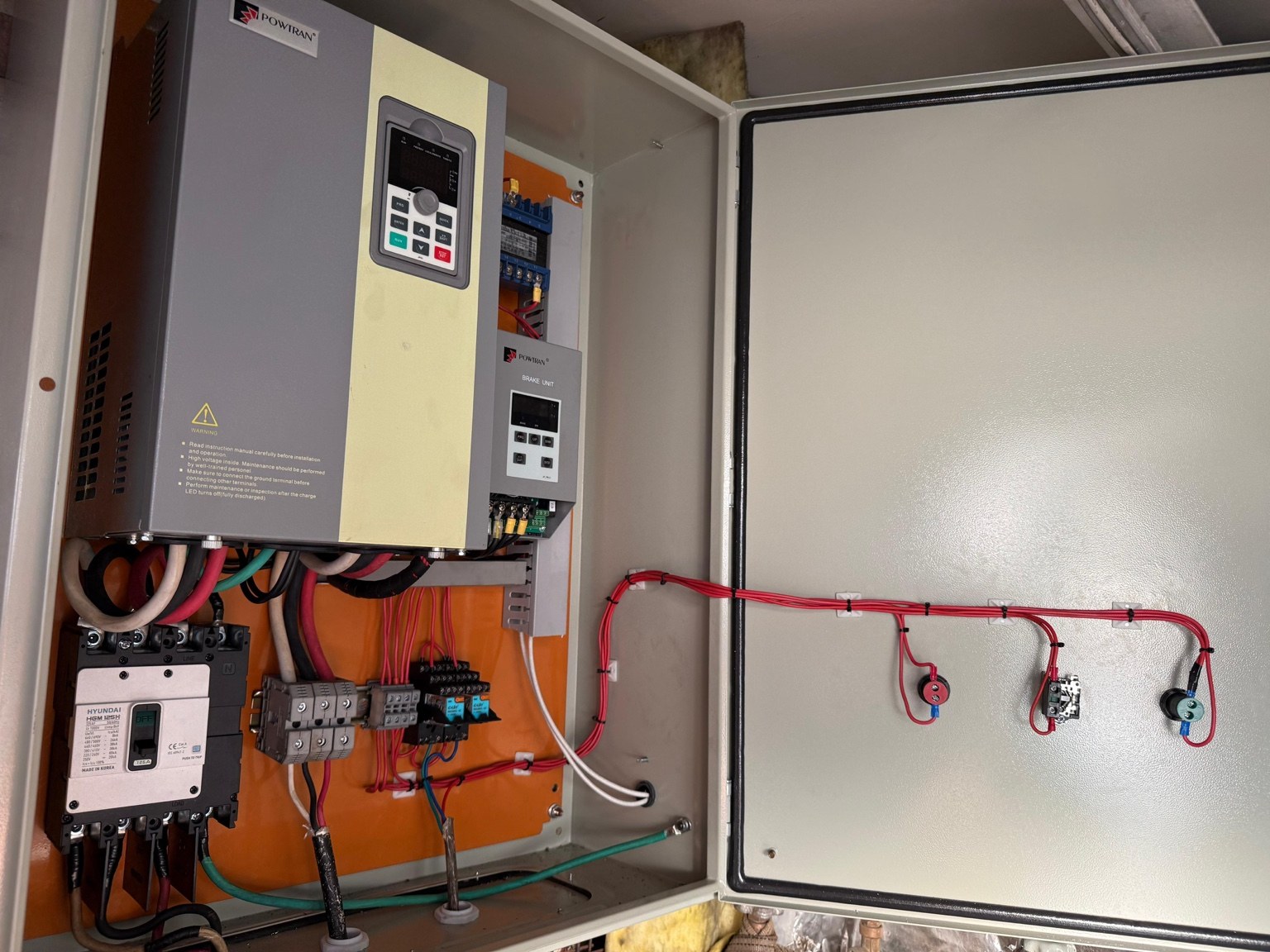

Two views of the same drive assembly, showing the POWTRAN drive, labelled braking unit and associated cabinet wiring.
01 / APPLICATION CONTEXT
What the equipment shows.
A motor-drive assembly combines power conversion, command inputs and protection interfaces. The two photographs are kept together because they show the same cabinet from complementary angles. A labelled braking unit is visible; the connected machine, motor rating and approved braking duty are not established.
02 / VISIBLE TECHNICAL FEATURES
Control, protection and operator interfaces.
- POWTRAN drive and labelled Brake Unit
- Main breaker, transformer and relays
- Drive wiring, operator wiring and earth connection
03 / ENGINEERING REVIEW
What to verify on a similar installation.
- Confirm the motor, driven machine and permitted operating duty
- Review drive parameters and braking-unit compatibility
- Verify command, protection and controlled-stop behaviour under the agreed test procedure
These are proposed review points for a future assessment—not claims that the photographed installation passed those tests.
Documented scope
The original company photographs establish the visible equipment only. Final ratings, connected loads, vessel details and acceptance records require the project drawings and site review.
ADDITIONAL VIEWS / SAME STUDY
The details behind the interface.
Drive cabinet wiring details
Another view of the POWTRAN cabinet showing drive and braking-unit wiring, door controls and earth connection. It complements the view of the same cabinet and shows its internal assembly.
